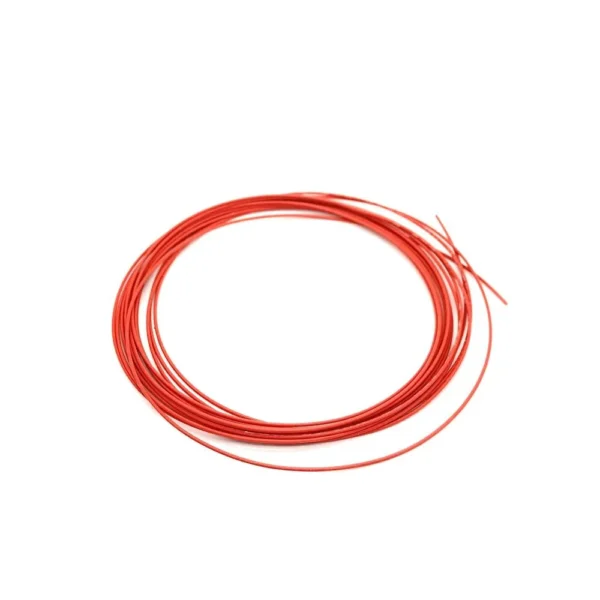

M22759/32-22-2 22AWG Tefzel Wire Red

1.17  - 274.52  incl. tax
0.97  - 226.88  excl. tax

SKU: N/A Categories: ,
Guaranteed Safe Checkout
Extra Features
  • Premium Quality
  • Worldwide Shipping
  • Money Back Guarantee

M22759/32-22-2 22AWG Tefzel Wire is alternative to Raychem Spec55 55A0111-22-2. Sold per meter, you can choose how much you need.

The insulation provides superior cut-rough and abrasion resistance making it ideal for use in Motorsport and Mil-Spec Wiring applications.

22AWG Tefzel Wire Specifications:

  • Color: Red
  • Conductor Type: Tin Plated Copper
  • Gauge: 22 AWG
  • Insulation: Cross-linked Modified ETFE
  • Voltage Rating: 600V

Standard Uses:

  • Motorsport Wiring Looms
  • Race Car Wire Harness
  • Data Acquisition Looms
  • Chassis Looms
  • Automotive Wire

Various diameters available from 26AWG to 12AWG

  • 24AWG used mainly for sensors connectors
  • 22AWG light duty power supply (injectors, solenoids) and sensors
  • 20AWG medium load (up to 10 Amp)
  • 16AWG fuel pumps, rad fans

For added Loom protection, we recommend to cover wires with Raychem DR-25 Heat Shrink and Raychem Molded Boots

Our offered Tefzel Wire is lighter and thinner than usual automotive grade wire and can be used continuously at very high temperatures and as such is widely used in Motorsport harness systems.

Weight 0.005 kg
Dimensions N/A


Wire Gauge

22 AWG

Wire Quantity

1 M, 100 M Spool, 300 M Spool
