Raychem 202K132-25-0 is a straight moulded part with retention lip in fluid resistant modified elastomer. The retention lip locks against the connector backshell groove to hold the boot in place under cable movement.

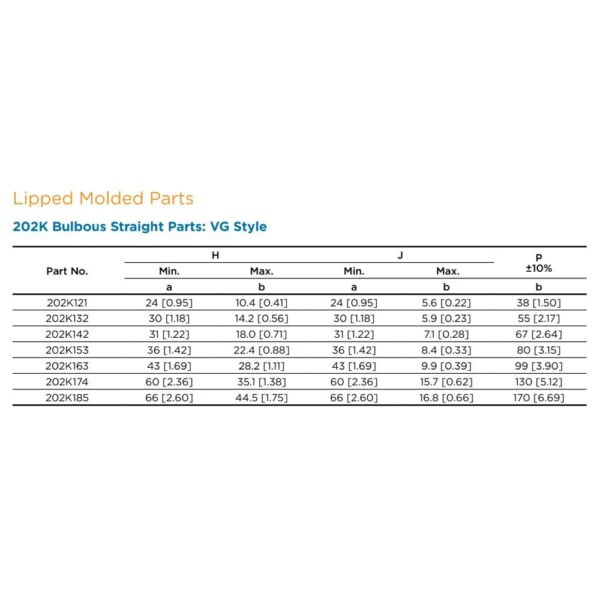

Raychem 202K132-25-0 Specifications
| Property |
Value |
| Moulded shape |
Straight |
| Lipped |
Yes |
| H — Big End diameter, as supplied |
30 mm |
| H — Big End diameter, after recovery |
14.2 mm |
| J — Small End (port) diameter, as supplied |
30 mm |
| J — Small End (port) diameter, after recovery |
5.9 mm |
| P — Total length, after recovery |
55 mm |
| R — Entry length, after recovery |
32 mm |
| Operating temperature |
-75 °C to +150 °C |
| Adhesive pre-coat |
No |
| Material |
Fluid Resistant Modified Elastomer |
Note: this boot is not pre-glued. For a fully sealed system apply HellermannTyton V9500 Epoxy inside before fitting.
HellermannTyton Alternative
HellermannTyton equivalent: 154-42-G.
