Name: Souriau 8STA0-02-35SN | Oval Flange Receptacle Autosport Connector
Brand: Souriau
SKU: 8STA0-02-35SN
Price: 51.84 EUR
Availability: InStock

Souriau 8STA0-02-35SN Connector

51.84 € excl. VAT

The price is shown without VAT. For European countries correct VAT is automatically calculated at checkout.

Oval Flange Receptacle autosport connector with 3x 22D (5A) Socket (Female) contacts, Red keyway. IP67 sealed.

In stock

Guaranteed Safe Checkout

Extra Features

Premium Quality
Worldwide Shipping
Money Back Guarantee

Souriau 8STA0-02-35SN is oval flange receptacle connector with 3x 22D (5A) Socket (Female) contacts and Red keyway. For motorsport ECU, sensor, and harness connections on firewall or bulkhead panels.

Souriau Motorsport 8STA circular connectors are specifically designed for motorsport applications where high performance, small size and lightweight are key factors. They are used across engine control units, data acquisition systems, communications equipment, and wiring harnesses in professional racing.

Souriau 8STA0-02-35SN Connector specifications:

Property	Value
Shell style	Oval Flange Receptacle
Shell size	02
Total contacts	3
Contact size	22D — 5A per contact
Wire gauge	22–26 AWG
Contact gender	Socket (Female) — M39029/56-348
Keyway orientation	Red
Coupling	1/3 turn bayonet with colour-coded lock indicator
IP rating	IP67
Temperature range	-55°C to +175°C
Shell material	Aluminium, black zinc cobalt finish
Backshell	Integrated, for heat shrink boots

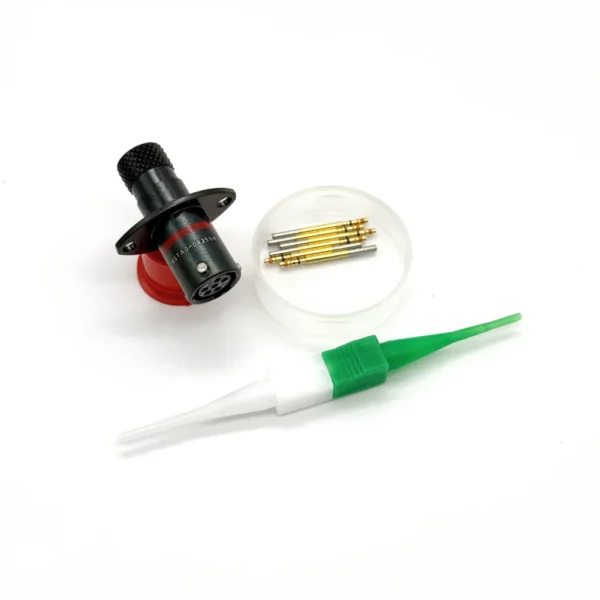

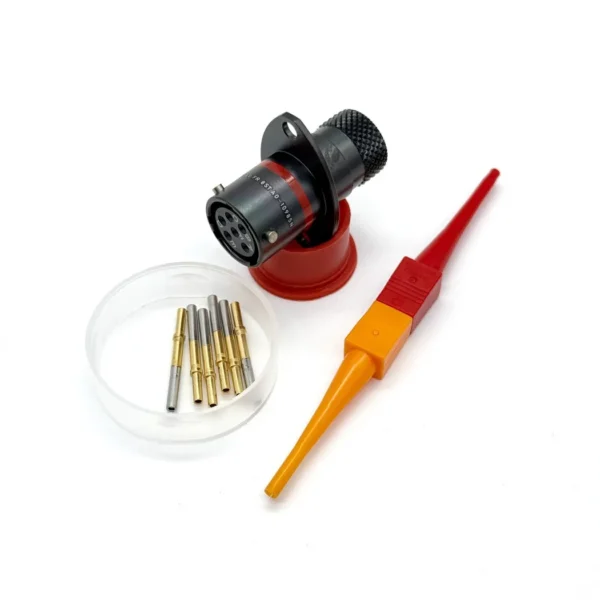

All connectors include required contacts and insertion/removal tool.

Compatible Heat Shrink Boots

	Straight Boot	90° Boot
HellermannTyton	1037-4-G	1182-4-G

Combine with 8STA6-02-35PN Plug connector.

Reference part numbers: 8STA00235SN

Weight	0.024 kg
Contact Size	22D (5A)
Number Of Contacts	3
Connector Shell Size	02
Connector Type	0 – Oval Flange Receptacle
Connector Keyway	N – Red
Type Of Contact	S – Socket
Brand	Souriau
Mixed Contact Sizes	No
Contact Arrangement	02-35
