Name: ASU003-05PA-HE | Micro UltraLite Bulkhead | Yellow
Brand: TE Connectivity / Deutsch
SKU: ASU003-05PA-HE
Price: 53.46 EUR
Availability: OutOfStock

Deutsch ASU003-05PA-HE Connector

53.46 € excl. VAT

The price is shown without VAT. For European countries correct VAT is automatically calculated at checkout.

5-way Micro UltraLite Oval Flange Receptacle, Pin (Male) contacts, A keyway (Yellow). Shell size 3, size 24 contacts, 24–30 AWG, 3 A. IP67. Contacts and insertion tool included.

Sold out, contact us for lead time

This product is currently sold out!

No worries! Please enter your e-mail address and we will promptly notify you as soon as the item is back in stock.

Great! You have been added to the waitlist for this product. You will receive an email as soon as the item is back in stock.

Guaranteed Safe Checkout

Extra Features

Premium Quality
Worldwide Shipping
Money Back Guarantee

ASU003-05PA-HE is a 5-way Deutsch Autosport Micro UltraLite (ASU) series oval flange receptacle for bulkhead or firewall panel mounting, with size 24 Pin contacts and A keyway — Yellow band. Two-hole bolt-down flange. Shell size 3, rated at 3 A per circuit, accepts 24–30 AWG with PTFE (Tefzel) insulation. IP67 sealed, conductive black zinc finish. 30% lighter than a mated ASL pair, with a 17% smaller coupling ring.

ASU003-05PA-HE Connector Specifications

Property	Value
Series	Micro UltraLite (ASU)
Body style	Oval Flange Receptacle
Shell size	3
Positions	5
Contact size	24
Contact type	Pin
Keyway	A — Yellow band
Wire range	24–30 AWG
Rated current	3 A per contact
IP rating	IP67
Shell material	Conductive black zinc finish
Contact material	Gold-plated copper alloy
Mounting	Two-hole bolt-down oval flange

Mating Connector

Mates with the same-keyway ASU03 5-way plug carrying Socket contacts:
– ASU603-05SA-HE

Contacts and Tools

Size 24 contacts are included. For replacement or spare contacts:
– Pin contact 605705-31

Crimp tooling: M22520/2-01 with positioner 605839.
Insertion / removal: 605837.

Shrink Boot

The housing has a built-in shrink boot lip. Compatible boots for shell size 3:

	Straight	90°

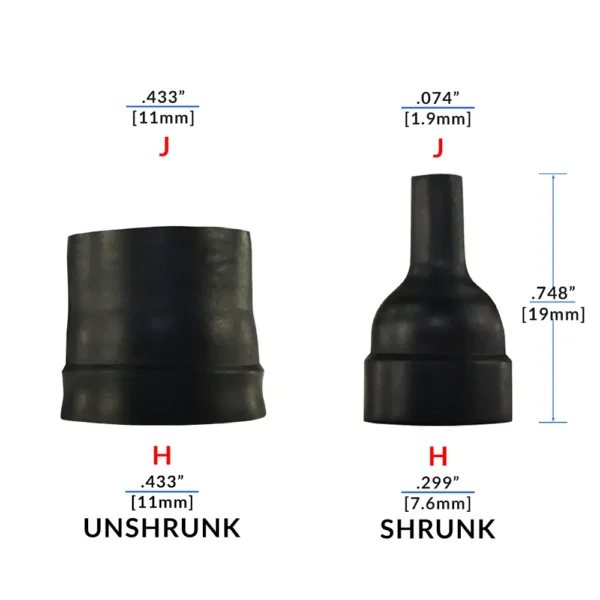

Raychem	204W221-25-G03-0	224W221-25-G03-0
HellermannTyton	1037-4-G	1182-4-G

Weight	0.01 kg
Dimensions	0.16 × 0.125 × 0.02 m
Number Of Contacts	5
Connector Shell Size	03
Contact Size	24 (3A)
Connector Type	0 – Oval Flange Receptacle
Connector Keyway	A – Yellow
Type Of Contact	P – Pin
Brand	TE Connectivity / Deutsch
Deutsch Connector	Deutsch ASU Series
Mixed Contact Sizes	No
Contact Arrangement	03-05
