Name: Souriau 8STA6-02-35PA | Plug Autosport Connector
Brand: Souriau
SKU: 8STA6-02-35PA
Price: 57.73 EUR
Availability: InStock

Souriau 8STA6-02-35PA Connector

57.73 € excl. VAT

The price is shown without VAT. For European countries correct VAT is automatically calculated at checkout.

Plug autosport connector with 3x 22D (5A) Pin (Male) contacts, Yellow keyway. IP67 sealed.

In stock

Guaranteed Safe Checkout

Extra Features

Premium Quality
Worldwide Shipping
Money Back Guarantee

Souriau 8STA6-02-35PA is plug connector with 3x 22D (5A) Pin (Male) contacts and Yellow keyway. Mates with 8STA0-02-35SA Oval Flange Receptacle.

Souriau Motorsport 8STA circular connectors are specifically designed for motorsport applications where high performance, small size and lightweight are key factors. They are used across engine control units, data acquisition systems, communications equipment, and wiring harnesses in professional racing.

Souriau 8STA6-02-35PA Connector specifications:

Property	Value
Shell style	Plug
Shell size	02
Total contacts	3
Contact size	22D — 5A per contact
Wire gauge	22–26 AWG
Contact gender	Pin (Male) — M39029/58-360
Keyway orientation	Yellow
Coupling	1/3 turn bayonet with colour-coded lock indicator
IP rating	IP67
Temperature range	-55°C to +175°C
Shell material	Aluminium, black zinc cobalt finish
Backshell	Integrated, for heat shrink boots

All connectors include required contacts and insertion/removal tool.

Compatible Heat Shrink Boots

	Straight Boot	90° Boot
HellermannTyton	1037-4-G	1182-4-G

Combine with 8STA0-02-35SA Oval Flange Receptacle connector.

Reference part numbers: 8STA60235PA

Weight	0.024 kg
Contact Size	22D (5A)
Number Of Contacts	3
Connector Shell Size	02
Connector Type	6 – Plug
Connector Keyway	A – Yellow
Type Of Contact	P – Pin
Brand	Souriau
Mixed Contact Sizes	No

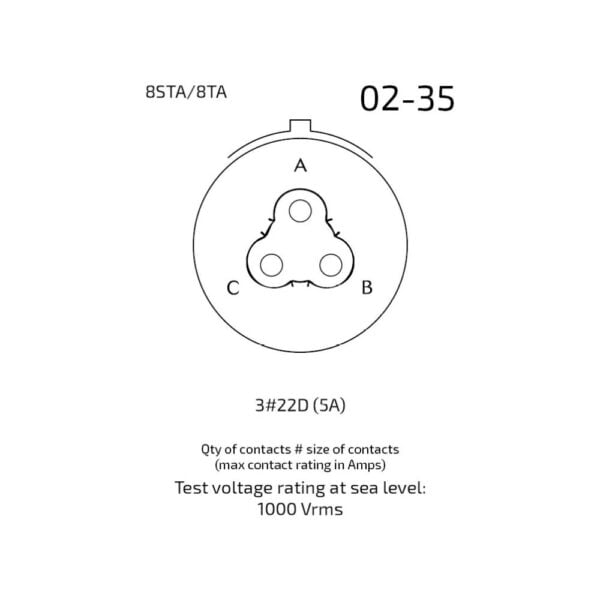

Contact Arrangement	02-35
