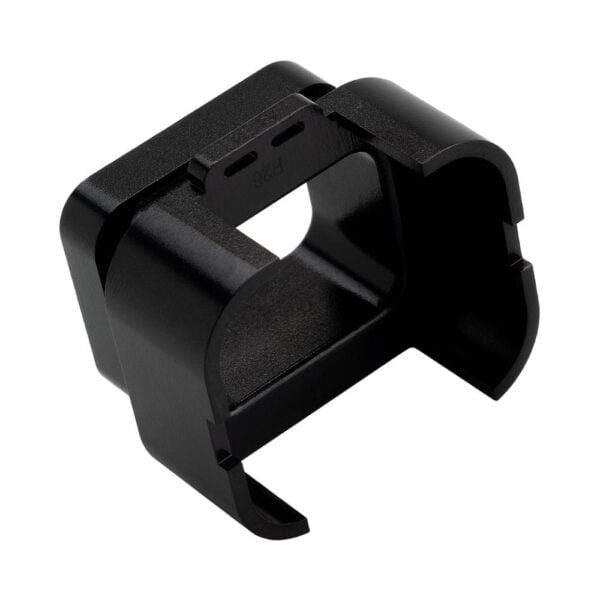

Black anodised CNC machined aluminium backshell adaptor for 26-way AMP Superseal connectors. Push-fits onto the connector housing and provides a grooved surface for a heat shrink moulded boot to lock against — the same installation method used on mil-spec circular connectors.
Suits the 26-way Superseal connector used on ECUs, dash loggers, and PDMs from MoTeC, Link, Haltech, DTA, Emtron, Syvecs, and most other motorsport electronics manufacturers.
Important: thread the boot onto the wiring loom before terminating the connector. Moulded boots cannot be fitted over a terminated connector.
Heat shrink moulded boots are not included.
Compatible Boots
Straight exit:
| Boot | Entry (as supplied) | Cable exit (recovered) |
|---|---|---|
| Raychem 202K132-25-0 | 30 mm | 5.9 mm |
| Raychem 202K142-25-0 | 31 mm | 7.1 mm |
| HellermannTyton 154-42-G | — | — |
| HellermannTyton 155-42-G | 31 mm | 7.1 mm |
90° exit:
| Boot | Entry (as supplied) | Cable exit (recovered) |
|---|---|---|
| Raychem 222K132-25-0 | 30 mm | 5.9 mm |
| Raychem 222K142-25-0 | 31 mm | 7.1 mm |
| HellermannTyton 1154-42-G | — | — |
| HellermannTyton 1155-42-G | — | — |
Boot size selection: the 202K132 / 154-42-G and 222K132 / 1154-42-G boots fit tight on the backshell before recovery. If the wiring bundle exiting the connector is large, the 202K142 / 155-42-G or 222K142 / 1155-42-G (larger J port) may be more suitable. Check the recovered J diameter against your bundle OD before ordering.
