Raychem 222K142-25-0 is a 90-degree moulded part with retention lip in fluid resistant modified elastomer. Use this boot where the wiring harness must change direction immediately behind the connector — typical in tight chassis installations where a straight boot would cause the cable to strain against the boot wall.
Raychem 222K142-25-0 Specifications

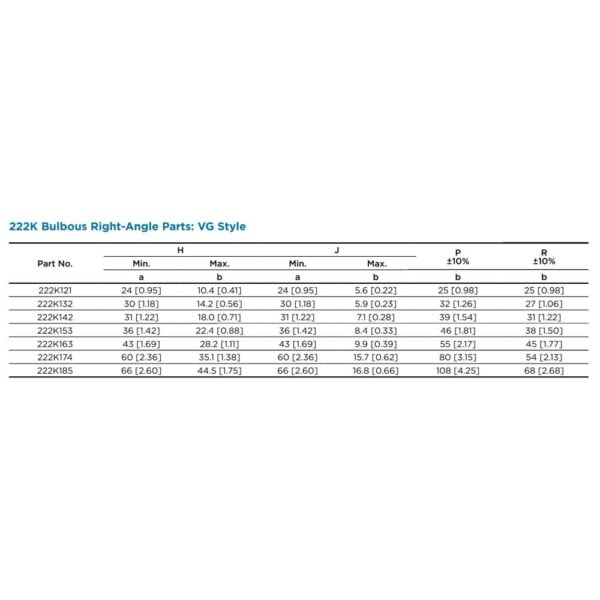

| Property | Value |
|---|---|
| Moulded shape | 90° |
| Lipped | Yes |
| H — Big End diameter, as supplied | 31 mm |
| H — Big End diameter, after recovery | 18 mm |
| J — Small End (port) diameter, as supplied | 31 mm |
| J — Small End (port) diameter, after recovery | 7.1 mm |
| P — Total length, after recovery | 39 mm |
| R — Height, after recovery | 31 mm |
| Operating temperature | -75 °C to +150 °C |
| Adhesive pre-coat | No |
| Material | Fluid Resistant Modified Elastomer |
Note: this boot is not pre-glued. Apply HellermannTyton V9500 Epoxy for a fully sealed installation.
Compatible Connectors
This boot is suitable for use on:
- Souriau 8STA connectors — shell size 12 and 14
- Deutsch AS connectors — shell size 14
- ECU Connector Aluminium Boot Adaptor 26-way
- ECU Connector Aluminium Boot Adaptor 34-way
HellermannTyton Alternative
HellermannTyton equivalent: 1155-4-G.
