Name: Raychem 222K132-25-0 90° Moulded Boot 30mm
Brand: TE Connectivity / Raychem
SKU: 222K132-25-0
Price: 9.85 EUR
Availability: InStock

Raychem 222K132-25-0 Heat Shrink Boot, 90° moulded part

9.85 € excl. VAT

The price is shown without VAT. For European countries correct VAT is automatically calculated at checkout.

Raychem 222K132-25-0 is a 90° lipped moulded boot in fluid resistant modified elastomer. H: 30 mm as supplied, 14.2 mm after recovery. Suits Souriau 8STA and Deutsch AS connectors with shell size 10.

In stock

SKU: 222K132-25-0 Category: Heat Shrink Boots

Guaranteed Safe Checkout

Extra Features

Premium Quality
Worldwide Shipping
Money Back Guarantee

Raychem 222K132-25-0 is a 90-degree moulded part with retention lip in fluid resistant modified elastomer. Use this boot where the wiring harness must change direction immediately behind the connector — typical in tight chassis installations where a straight boot would cause the cable to strain against the boot wall.

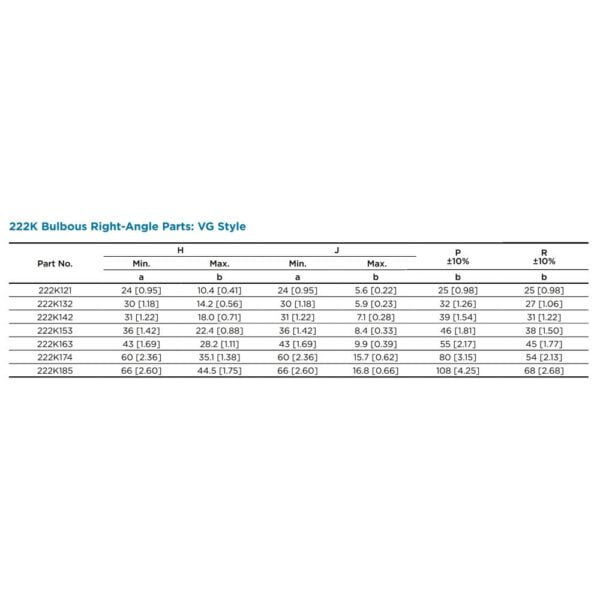

Raychem 222K132-25-0 Specifications

Property	Value
Moulded shape	90°
Lipped	Yes
H — Big End diameter, as supplied	30 mm
H — Big End diameter, after recovery	14.2 mm
J — Small End (port) diameter, as supplied	30 mm
J — Small End (port) diameter, after recovery	5.9 mm
P — Total length, after recovery	32 mm
R — Height, after recovery	27 mm
Operating temperature	-75 °C to +150 °C
Adhesive pre-coat	No
Material	Fluid Resistant Modified Elastomer

Note: this boot is not pre-glued. Apply HellermannTyton V9500 Epoxy for a fully sealed installation.

Compatible Connectors

This boot is suitable for use on:

Souriau 8STA connectors — shell size 10
Deutsch AS connectors — shell size 10

Weight	0.014 kg
Diameter H	30 – 14.2 mm
Diameter J	30 – 5.9 mm
Moulded Shape	90° Lipped Boot
Brand	TE Connectivity / Raychem
Length P	32 mm
