Souriau 8STA0-14-35PN Connector

92.79  inc. VAT

Available on backorder

SKU: 8STA0-14-35PN Category:
Guaranteed Safe Checkout
Extra Features
  • Premium Quality
  • Worldwide Shipping
  • Money Back Guarantee

Souriau 8STA standard circular connectors are designed specifically applications where high performance, small size and lightweight are key factors. They are used in many motorsport areas including engine control units, communications equipment, data acquisition systems and harnesses.

All connectors includes required contacts and insertion/removal tool

  • Rugged Aluminium body to provide long service in the harshest environments
  • Positive locking mechanism with locked colour indicators
  • 13 shell styles
  • Up to 128 contacts
  • 6 or 7 colour coded keyway orientations
  • Size 01: the smallest circular connector with removable contacts #26
  • Conductive black zinc or nickel plated
  • Sealed to IP67
  • Temperature range: -55°C to +175°C
  • Integrated backshell for heat shrink boot
Weight 0.024 kg

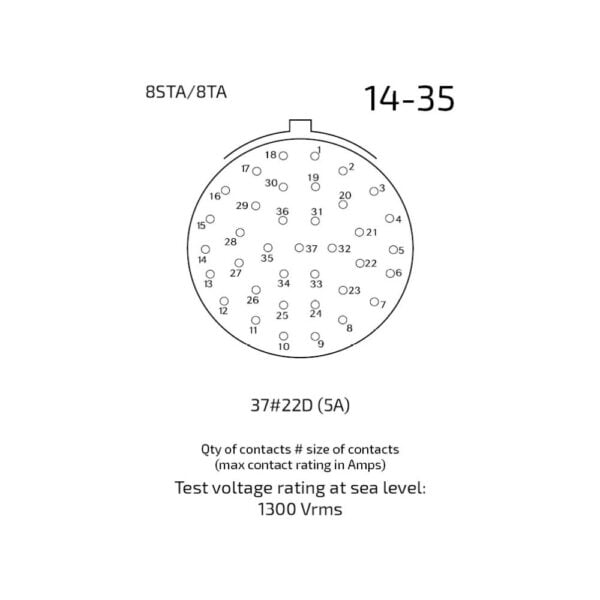

Contact Size

22D (5A)

Number Of Contacts

37

Special order

7 days

Connector Shell Size

14

Connector Type

0 – Oval Flange Receptacle

Connector Keyway

N – Red

Type Of Contact

P – Pin

Brand

Souriau
