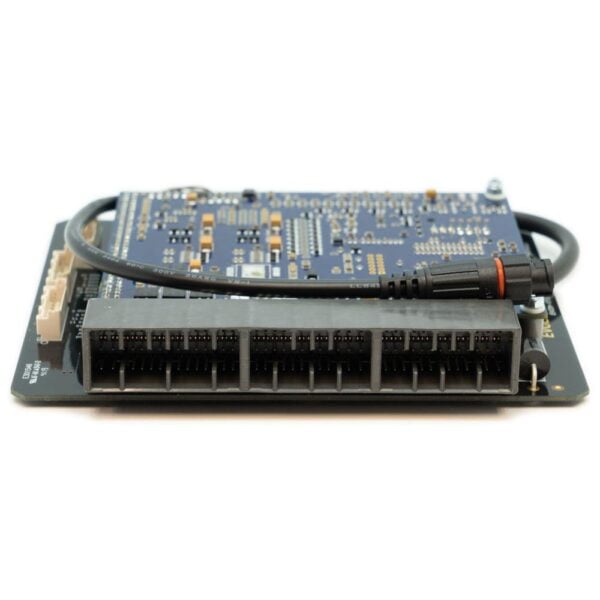

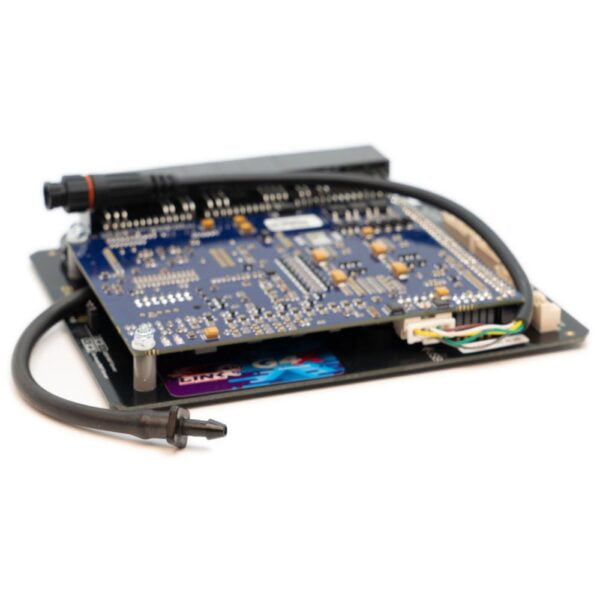

The EVOLink (EVO9X) is Link Engine Management’s G4X plug-in ECU for the Mitsubishi Lancer Evolution IX and the Evo VIII variant with the 3-connector ECU header. MIVEC variable intake cam timing is natively supported. Onboard MAP sensor (4-bar or 7-bar depending on board revision) is included. The PCB fits inside the factory ECU enclosure with no loom modifications.
Fitment note: The Evo VIII came with both 4-plug and 3-plug ECU configurations. The EVO9X is for 3-plug Evo VIII models and all Evo IX. For 4-plug Evo IV–VIII, use the EVOLink EVO8X (SKU 203-4000).
Vehicle Fitment
| Vehicle | Chassis | Engine | ECU plugs |
|---|---|---|---|
| Mitsubishi Lancer Evolution IX | CT9A | 4G63 + MIVEC | 3-plug |
| Mitsubishi Lancer Evolution VIII | CT9A | 4G63 | 3-plug only |
Manual transmission only.
Key Specifications
| Property | Value |
|---|---|
| SKU | 204-4000 |
| Link model code | EVO9X |
| Onboard MAP sensor | Yes — 4-bar or 7-bar (check board sticker) |
| MIVEC cam control | Supported (Evo IX) |
| Transmission | Manual only |
| CAN buses | 2 |
| Base map | Included |
| Software | PCLink G4X (free) |
G4X Platform Features
- MIVEC variable intake cam control (Evo IX)
- 5D boost control with 3 switchable maps
- Launch control, anti-lag, flat shift
- Sequential injection and direct spark
- 512 MB onboard data logging, 250 channels, 1 kHz/ch
- Individual cylinder fuel and ignition trim
Recommended Accessories
- LinkECU CAN Lambda Controller — wideband lambda via CAN
- Link XS Expansion Loom — additional I/O
Frequently Asked Questions
How do I confirm my Evo VIII needs the EVO9X and not the EVO8X?
Count the connector plugs on the factory ECU: 3 plugs = EVO9X (this product); 4 plugs = EVO8X.
Does it support MIVEC on the Evo IX?
Yes. MIVEC variable intake cam timing is natively supported on the Evo IX 4G63 engine.
Is a base map included?
Yes. A startup base map for the 4G63 is pre-loaded. Professional dyno tuning is required before use.
LinkECU PlugIn for Mitsubishi Expansion Options (total 2 expansions possible):
- An Volt 6 (Analog Input)
- An Volt 7 (Analog Input)
- An Volt 8 (Analog Input)
- An Volt 9 (Analog Input)
- An Volt 10 (Analog Input)
- An Volt 11 (Analog Input)
- An Temp 4 (Temperature Sensor Input)
- DI 9 (Digital input)
- DI 10 (Digital input)
- AUX 9 (E-throttle control)
- AUX 10 (E-throttle control)
- AUX 11 (Auxiliary Output)
LinkECU G4X PlugIn Key Features:
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features – antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN Communication
- QuickTune – automated fuel tuning
- Individual cylinder correction
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512Mb data logging memory
- Staged injection
- Knock Control
