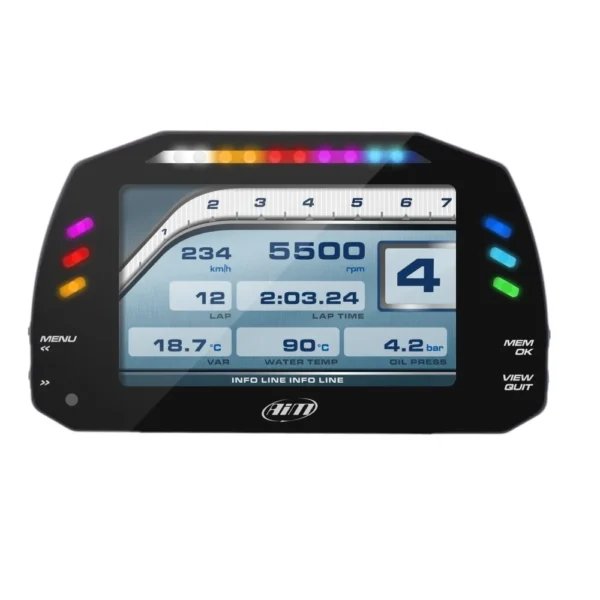

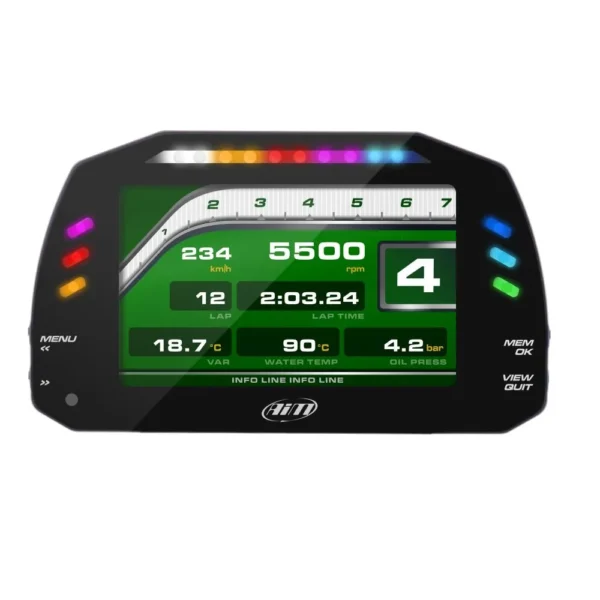

The AiM MXS Strada is the road and dual-purpose variant of the AiM MXS 5-inch dash. It shares the same 800 × 480 TFT display, AMP motorsport connectors, 8 analogue inputs, and 1,500+ ECU protocol support as the MXS Logger — but with two key differences: it is a display-only unit (no built-in data logger) and it includes road-legal warning icons alongside the standard motorsport display pages.
Road-legal warning icons — turn indicators, high beam, low fuel, oil pressure, and engine warning — are selectable from the display page library and overlay on any active data page. This makes the MXS Strada a practical ECU display for track-prepared road cars, time attack vehicles with road registration, and kit car builds where OEM warning lights are replaced by the AiM display.
The Strada can be paired with an AiM ECULog expansion module for data logging capability, or used standalone as a pure ECU display with GPS lap timing from the GPS09 module. Eight analogue inputs handle additional sensors not on the ECU — oil temperature, coolant pressure, fuel pressure — displayed on configurable pages alongside ECU channels.
Technical Specifications
| Property | Value |
|---|---|
| SKU | XA3MXSST12I010 |
| Display | 5.0″ TFT, 800 × 480 px, 1,100 lm |
| Data logging | None built-in (display-only; add ECULog module for logging) |
| Analogue inputs | 8 fully configurable, 500 Hz max each |
| CAN connections | 2 (ECU + expansion) |
| ECU protocols | 1,500+ via CAN, RS232, K-Line |
| Digital outputs | 1 |
| Shift LEDs | 10 configurable RGB |
| Alarm LEDs | 6 configurable RGB |
| Road-legal icons | Yes (indicators, high beam, oil pressure, engine warning, low fuel) |
| GPS | External GPS09 module via expansion CAN (optional) |
| Wi-Fi | Yes |
| Connectors | 2× AMP motorsport connectors + 1 Binder |
| Voltage | 9–15 V |
| IP rating | IP65 |
| Dimensions | 169.4 × 97 × 23 mm |
| Weight | ~480 g |
| Software | Race Studio 3 |
MXS Strada vs MXS Logger
| Feature | MXS Strada (this product) | MXS Logger |
|---|---|---|
| Built-in data logger | No (display-only) | Yes (4 GB) |
| Road-legal icons | Yes | No |
| Digital outputs | 1 | 2 |
| GPS included | No (optional add-on) | Yes (GPS09 included) |
| Best for | Road car, dual-purpose, kit car | Track-dedicated racing build |
Accessories
FAQ
Does the MXS Strada record data?
No. The MXS Strada is a display-only unit with no internal data logger. To add logging capability, connect an AiM ECULog module via the expansion CAN. If you need a built-in logger from the start, choose the MXS Logger instead.
Does the Strada include the GPS module?
No. The GPS09 module is an optional add-on for the Strada, connected via the expansion CAN. It is included in the MXS Logger kit. If you need GPS lap timing with the Strada, order the GPS09 module separately.
Can I use the MXS Strada on a road-registered car?
Yes. The road-legal warning icon set (indicators, high beam, oil pressure warning, engine warning light) is available as a display page and makes the Strada suitable for road-registered track cars, time attack vehicles, and dual-purpose builds where the OEM instrument cluster is removed.
What is the difference between the MXS Strada and MXP Strada?
The MXS Strada has a 5-inch screen, 2 CAN buses, and 8 analogue inputs at 500 Hz. The MXP Strada has a 6-inch screen, 3 CAN buses, and 8 analogue inputs at 1,000 Hz. Choose the MXP Strada if you need a third CAN bus for a SmartyCam or additional expansion module alongside your ECU connection.
