LinkECU PlugIn Toyota JZX100

Name: LinkECU JZX100Link | Toyota 1JZ-GTE VVTi | XTRA Motorsport
Brand: Link Engine Management
SKU: 232-4000
Price: 1745.00 EUR
Availability: BackOrder

1745.00 € excl. VAT

The price is shown without VAT. For European countries correct VAT is automatically calculated at checkout.

Link JZX100Link (JZX100X) G4X plug-in ECU for the Toyota JZX100 Mark II, Chaser, and Cresta with the 1JZ-GTE VVTi engine. Onboard MAP sensor and VVTi cam control included. E-throttle expansion connector provided. Manual transmission only.

Available on backorder

SKU: 232-4000 Categories: Link ECU, Standalone ECU (Engine Control Units) Tag: Backorder

This product is currently sold out!

No worries! Please enter your e-mail address and we will promptly notify you as soon as the item is back in stock.

Great! You have been added to the waitlist for this product. You will receive an email as soon as the item is back in stock.

Guaranteed Safe Checkout

Extra Features

Premium Quality
Worldwide Shipping
Money Back Guarantee

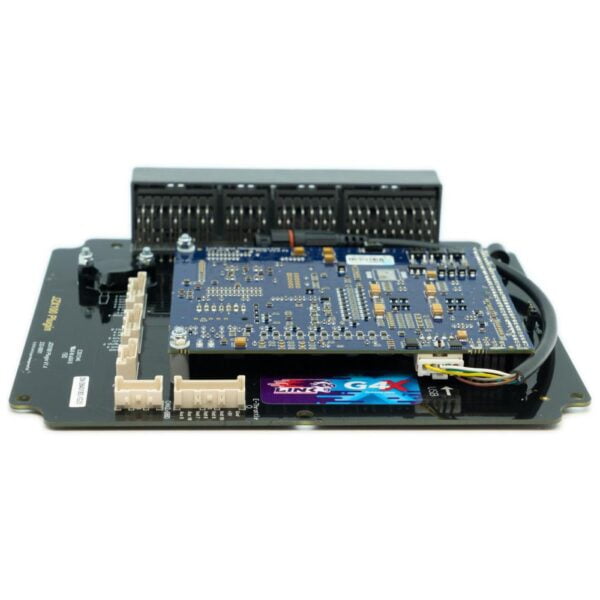

The JZX100Link (JZX100X) is Link Engine Management’s G4X plug-in ECU for the Toyota JZX100 chassis — Mark II, Chaser, and Cresta — with the 1JZ-GTE VVTi engine. VVTi single cam control is natively supported. An onboard MAP sensor (4-bar or 7-bar depending on board revision) is fitted. The PCB replaces the factory board inside the OEM ECU enclosure with no loom modifications.

The ECU includes an expansion connector to support an upgrade to Direct Spark ignition (COP), and a dedicated E-throttle expansion connector with Aux 9/10 and additional analogue inputs for drive-by-wire conversion. The JZX100Link has two CAN buses.

Note on MAP routing: a jumper pin adjustment is required to route the MAP signal via the MAF plug (An Volt 6). No alteration to the factory loom is required beyond this.

Vehicle Fitment

Vehicle	Engine	Years
Toyota Mark II JZX100	1JZ-GTE VVTi	1996–2001
Toyota Chaser JZX100	1JZ-GTE VVTi	1996–2001
Toyota Cresta JZX100	1JZ-GTE VVTi	1996–2001

Manual transmission only.

Key Specifications

Property	Value
SKU	232-4000
Link model code	JZX100X
Onboard MAP sensor	Yes — 4-bar or 7-bar (check board sticker)
VVTi cam control	Supported (single cam intake)
E-throttle expansion	Dedicated connector provided
COP ignition	Expansion connector supported
Transmission	Manual only
CAN buses	2
Base map	Included
Software	PCLink G4X (free)

G4X Platform Features

VVTi cam control (single, intake)
5D boost control
Launch control, anti-lag, flat shift
Sequential injection and direct spark (COP expansion available)
512 MB onboard data logging, 250 channels, 1 kHz/ch
6D fuel and ignition mapping

Recommended Accessories

LinkECU CAN Lambda Controller — wideband lambda via CAN
Link XS Expansion Loom — additional I/O

Frequently Asked Questions

Does the JZX100Link support VVTi?

Yes. VVTi single intake cam control is natively supported. The factory cam position sensor is used by the Link ECU directly.

Can the ECU be used for a COP (direct spark) ignition conversion?

Yes. A dedicated expansion connector on the JZX100Link PCB provides the additional ignition output channels required for a coil-on-plug conversion.

Is a base map included?

Yes. A startup base map for the 1JZ-GTE VVTi is pre-loaded. Professional dyno tuning is required before use.

Weight	1.15 kg
Special order	7 days
Brand	Link Engine Management
ECU Type	PlugIn
Suits Vehicles	Toyota
